Wireless Operator Interface




The Limitless™ product line extends to include wireless operator interface. With both momentary and maintained contacts, the wireless operator interface (WOI) can be used to provide indication via a pushbutton or another user chosen operator type (i.e. 22 mm rotary switch, 22 mm key switch, etc.). The WOI Series adds a human interface device to the product driven interfaces of Limitless™ switches and receivers wireless control from both person and position.


The WOI Series is especially beneficial for remote monitoring applications where wiring or wire maintenance is not physically possible or economically feasible.Combining this greater flexibility with proven harsh-duty packaging can result in increased efficiencies and ease in establishing a remote operator for use in a variety of applications, including turning equipment or devices on or off, opening and closing doors/gates, stopping a production conveyor, indicating the need for service, and more.





WOI Series Operator Interface/Pushbutton:


    Differentiator:

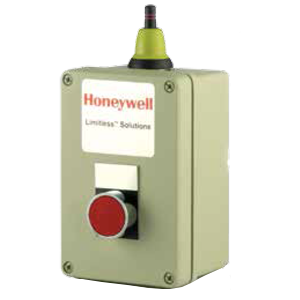

    Limitless™ WOI Series is a human interface device that provides operator indication with a pushbutton.
    With both momentary and maintained contacts, the Limitless™ Wireless Operator Interface (WOI) can be used by an operator to provide indication via a pushbutton or another user-chosen operator type (i.e. 22 mm rotary switch, 22 mm key switch, etc.). The WOI Series adds a human interface device to the product-driven interfaces of Limitless™ switches and receivers – wireless control from both person and position.

  1. Key Features:
    1. Aluminum enclosure, IP65 sealing,
    2. 22 mm flush, 29 mm mushroom, & 40 mm mushroom (push-pull) round pushbutton operators available,
    3. User chosen/installed operator type is allowable,
    4. Momentary and maintained contact options,
    5. Design for ease of installation,
    6. Works with Limitless™ WMPR, WDRR, and WPMM receivers.



WOI Series Operator Interface:



Product type Limitless™ Operator Interface Switches
Availability Global, license-free bands
Operating force Momentary pushbutton: 6,2 N ±2 N [1.4 lb ±0.45 lb] Maintained pushbutton: 7,0 N ±2 N [1.6 lb ±0.45 lb]
Actuator type Pushbutton operators • 22 mm round flush momentary • 29 mm mushroom head momentary • 40 mm mushroom head maintained (push-pull); No operator option available for use with user supplied 22 mm operator and contact blocks
Actuator/contact blocks (if user supplied) 22 mm switch design (i.e. 22 mm rotary switch, 22 mm key switch, etc.) /gold contact, normally open and normally closed contact blocks capable of reliably controlling a 30 mA @ 3.6 Vdc electrical load
Actuator colors Black, Green, Red*, Yellow * not available for the 29 mm mushroom, & 40 mm mushroom (push-pull) pushbuttons
Housing material Powder-coated aluminum
Radio WPAN 802.15.4; 2.4 GHz
Antenna type Direct or remote-mount antenna options; Omni directional
Sealing IP65
EMC Latest applicable standards: EN 300 328, V1.7.1; EN 61326-1 (2006); EN 301 489-1, V1.8.1; EN 301 489-17, V2.1.1
Shock IEC 60068-2-27; half sine, 50 g, 6 mS, 3 axis
Vibration IEC 60068-2-6; 10-500Hz w/ 0,35 mm peak-to-peak, 58-500 Hz- 10 g
Operating temperature -25 °C to 50 °C [-13 °F to 122 °F]
Agency approvals and standards FCC 15.247 Industry Canada RSS 210 ETSI, CE mark ACMA, C-Tick mark


  1. Applications:

    Industrial

    1. CNC action, Conveyors, Door/Gate action, Lifts,
    2. Material handling, Motor drives, Presses,
    3. Pumps, Quality control buttons, Specialty machines
    4. Stop/Start machinery, Stop/Start production,Valve action.

    Transportation

    1. Agricultural equipment,
    2. Movable machinery.
